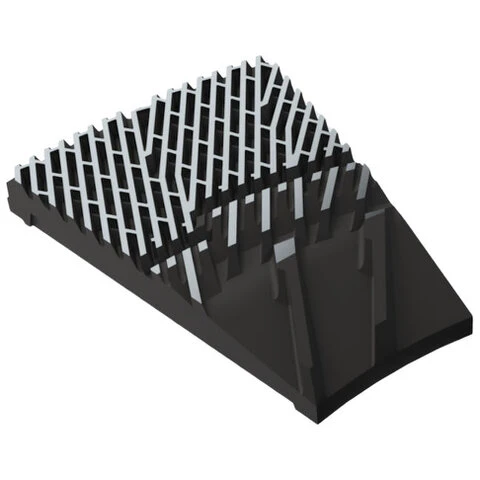

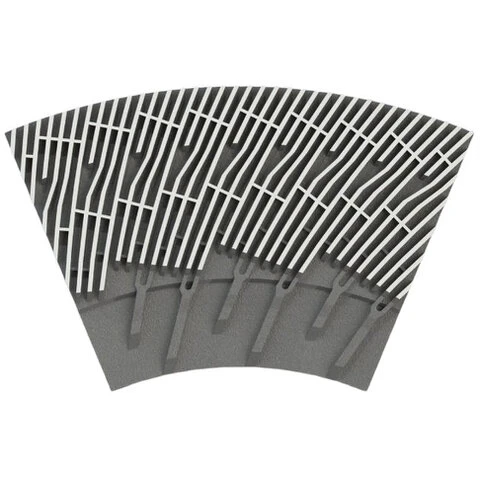

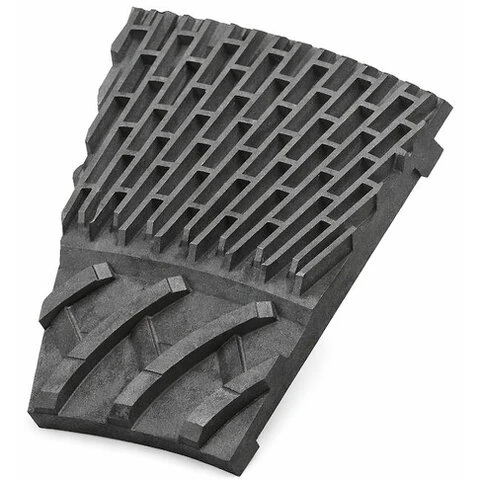

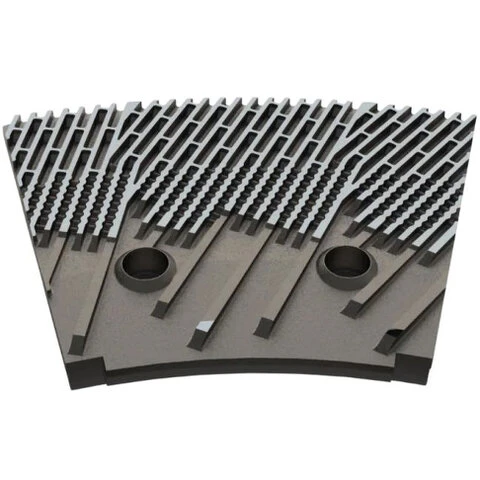

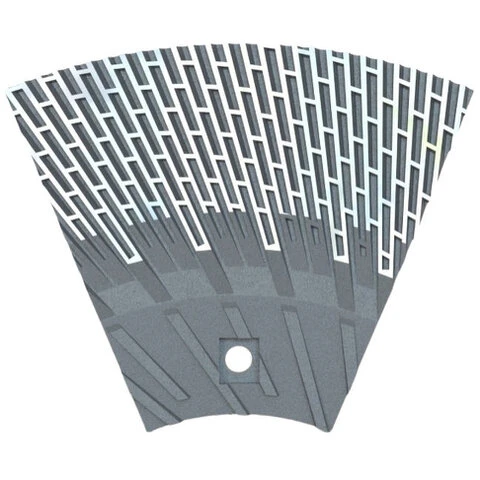

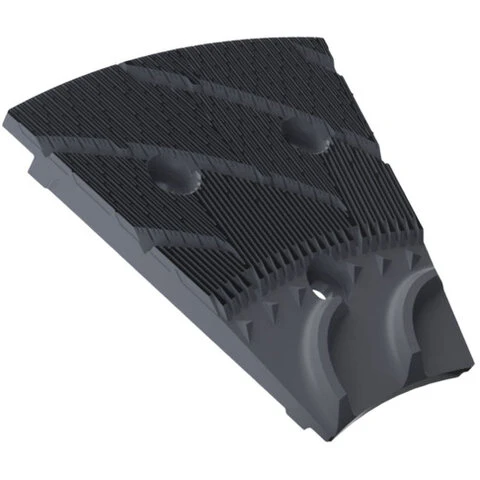

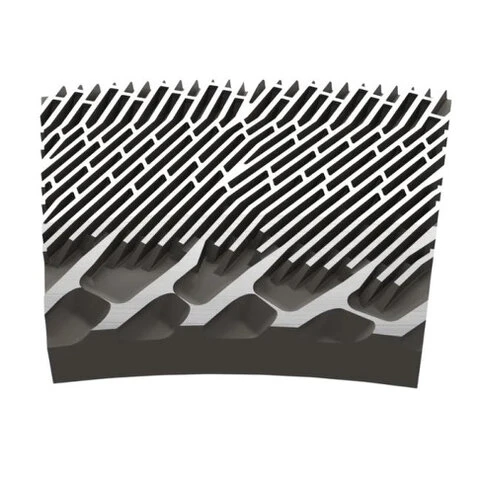

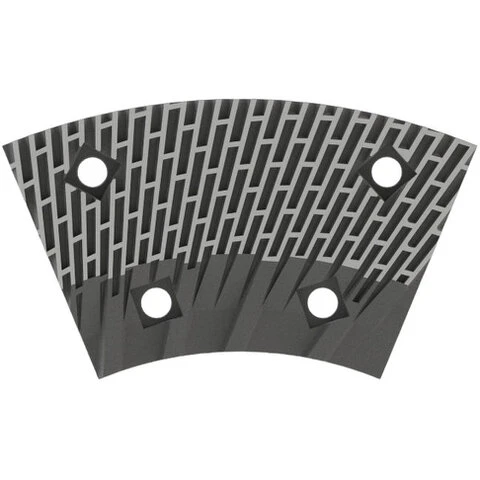

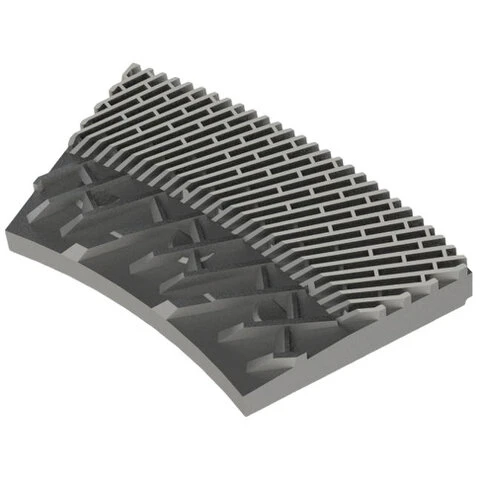

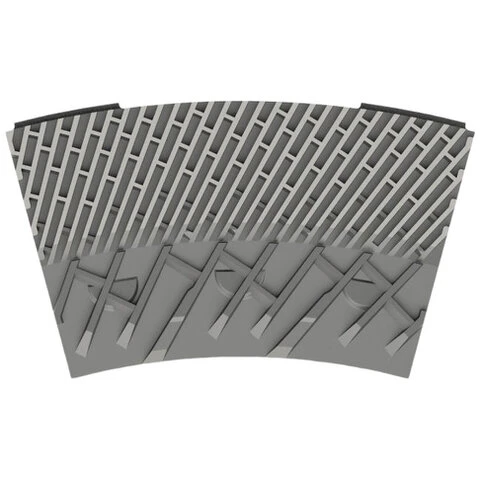

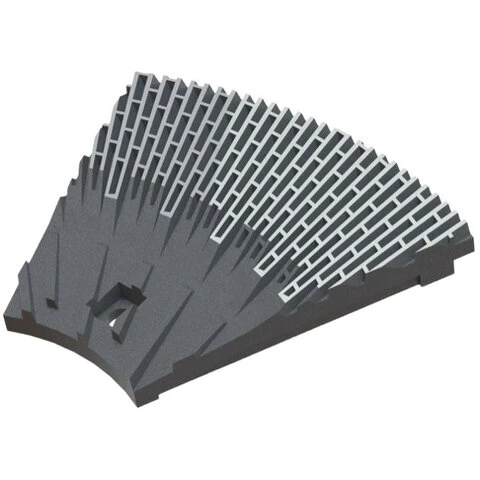

TAITAN® WBP CONCEPT LINE

A high-performance cast refiner plates line for all types of wood based panels equipment.

Reconstituted wood panel production represents one of the most dynamic segments of the global wood industry, with sustained growth driven by demand for sustainable and versatile materials. The refining plate constitute the central equipment in this process, responsible for modifying the physical properties of wood fibers through controlled mechanical action.

The Engineering Core

The manufacturing of high-quality wood-based panels relies on the precise transformation of raw wood chips into uniform fibers. This critical defibration process occurs inside thermomechanical refiners. The geometry, gap stability, and pattern of the Taitan Refiner Fillings used within these machines dictate the final quality, structural integrity, and surface finish of globally utilized fiberboards like MDF and HDF.

Refiner-Dependent Panels

Unlike Particleboard or Oriented Strand Board (OSB) which utilize flakers, specific panels strictly depend on pressurized refiners to create a fine, homogenous fiber matrix. Medium Density Fiberboard (MDF) and High Density Fiberboard (HDF) represent the vast majority of this demand.

Medium Density Fiberboard (MDF) 62%

High Density Fiberboard (HDF) 25%

High-Density Hardboard 8%

Low-Density Insulation Board 5%

Engineering Advantage

The defining characteristic of TRFs is their ability to maintain a strictly parallel refining gap, often measured in fractions of a millimeter. This parallelism ensures uniform shear force and constant residence time for the wood material. Instead of merely cutting the wood, TRFs promote fibrillation a rubbing action that peels the fibers and exposes hydroxyl groups, maximizing the surface area available for synthetic resin bonding.

Gap uniformity

Prevents unprocessed shives and coarse bundles from bypassing the active refining zone, eliminating surface defects.

Fibrillation Quality

Enhances the internal bond (IB) strength of the HDF/MDF panel by creating highly flexible, thread-like fibers.

Energy Efficiency

Optimized bar patterns on TRFs translate motor torque directly into defibration rather than useless heat or friction.

Downstream Economic Impact

Investing in precise, Taitan Refiner Fillings (TRFs) yields cascading cost reductions throughout the panel plant. Better fiber geometry means less resin is wasted filling voids, pressing times drop due to better heat transfer, and sanding allowances decrease as the panel surface becomes smoother.

Fiber Length Distribution

Statistical distributions prove that flat parallel refining yields a tighter standard deviation in fiber lengths. A concentrated bell curve means predictable mechanical properties and a flawless, "telegraph-free" surface ideal for thin melamine lamination.

Alloy Compositions and Properties

High Chromium Cast Iron

Composition: 15-30% chromium content for abrasion resistance
Hardness: 58-63 HRC after heat treatment
Applications: Standard MDF and particleboard refining
Service Life: 300-400 hours under normal operating conditions

Stainless Steel Alloys

Composition: 316L or specialized blends for corrosion resistance
Hardness: 45-55 HRC with enhanced toughness
Applications: Recycled fiber processing and high-moisture environments
Service Life: 250-350 hours with superior corrosion resistance

Tungsten Carbide Composites

Composition: WC particles in steel matrix for extreme wear resistance
Hardness: 65-70 HRC for maximum durability
Applications: High-volume HDF production and abrasive raw materials
Service Life: 500-800 hours in demanding applications

Service Life Optimization Strategies

Maintenance Protocols

Regular Inspection: 50-hour intervals for gap measurement and wear assessment
Predictive Replacement: Performance monitoring to optimize change-out timing
Proper Storage: Climate-controlled environments to prevent corrosion
Installation Procedures: Precision mounting to minimize vibration and uneven wear

Operating Parameter Optimization

Gap Control: Maintain optimal clearances (0.1-2.0mm) based on application
Consistency Management: Stable fiber consistency for uniform wear patterns
Temperature Control: Cooling systems to prevent thermal damage
Feed Rate Optimization: Balanced throughput to maximize plate life

Performance Optimization Guidelines

Energy Efficiency Maximization

Design Selection Criteria

Open Area Optimization: Variable spacing for ideal hydraulic flow
Bar Angle Configuration: Progressive angles from inlet to outlet
Groove Geometry: Hydrodynamic designs to reduce clogging
Material Selection: Low-friction surfaces for reduced power consumption

Operational Best Practices

Consistency Control: Maintain optimal fiber consistency (3-6% for LC, 25-35% for HC)
Gap Management: Regular adjustment based on wear patterns and quality requirements
Process Integration: Coordinate with upstream and downstream equipment
Performance Monitoring: Continuous tracking of energy consumption per ton

Quality Assurance Protocols

Fiber Development Targets

MDF Applications: Uniform fiber length distribution with minimal fines
OSB Applications: Controlled strand dimensions for structural properties
Particleboard: Balanced particle size for density uniformity
HDF Applications: Ultra-fine fiber development for surface quality

Quality Control Systems

Real-time Monitoring: Fiber analysis systems for immediate feedback
Statistical Process Control: Trend analysis for proactive adjustments
Laboratory Testing: Regular sampling for comprehensive quality assessment
Customer Feedback Integration: End-user requirements incorporated into optimization

Maintenance Excellence

Preventive Maintenance Programs

Scheduled Inspections: Comprehensive assessment every 100 operating hours
Wear Pattern Analysis: Documentation of plate condition for optimization
Replacement Planning: Inventory management for minimal downtime
Training Programs: Operator education for proper handling and installation

Predictive Maintenance Technologies

Vibration Monitoring: Early detection of imbalance or wear issues
Temperature Tracking: Thermal analysis for optimal operating conditions
Performance Analytics: Data-driven insights for maintenance optimization
Remote Monitoring: Digital connectivity for expert support and guidance

Primary Stage Refining

Variable bar spacing with optimized open areas, reducing energy consumption by 15-20%
Recommended Specifications: 42"-72" diameter plates with high chrome alloy construction
Tooth Pattern: Progressive bar width reduction from inlet (8-12mm) to outlet (2-4mm)
Service Life: 300-500 hours at 50-100 tons/day capacity

Strand Preparation

Overhung designs for increased refining capacity at lower intensity
Material Requirements: High-grade alloy steel with precision heat treatment (58-66 HRC hardness)
Pattern Design: Rectangular grooves with greater hydraulic capacity than conventional plates
Recommended Gap Settings: 0.5-1.5mm for hardwood strands, 1.0-2.0mm for softwood

Surface Layer Refining

Minimum weight, high toughness design with pluggage-resistant surface
Tooth Geometry: Unique patterns for uniform fiber size distribution critical for OSB strength
Service Life: 400-600 hours with proper maintenance protocols

Particleboard Applications

High Consistency Refiner Plates: Designed for 25-35% consistency operations
Bar Configuration: Wider grooves (6-10mm) to accommodate larger particle sizes
Material Specification: High chromium cast iron with specialized heat treatment
Capacity Range: 30-80 tons/day depending on refiner diameter

Manufacturing Facilities

Global production facility for HC, LC, and MDF applications
Product Range: 16"-72" diameter plates
Key Innovations: Integrated with low rotor/high stator bar angles

Service Network

Technical Specifications

Material Options: High chromium alloys, nickel chromium alloy, stainless steel, tungsten carbide
Hardness Range: 58-66 HRC with precision heat treatment
Customization: Application-specific designs for energy reduction and extended life (Comprehensive Refining Solutions)

Product Portfolio

Overhung designs with customized plate holders
Compatibility: all type of refiners installed globally across all consistency ranges
Pattern Designs: Signature patterns for optimal fibre development
Service Life: Extended plate life through precision casting processes

Technical Features

Lifting Systems: Easy, user-friendly mounting with crane-free replacement options
Material Construction: Hardened alloys with wear-resistant properties
Gap Control: Hydraulic positioning systems for precise clearance management

Technical Recommendations by Production Capacity

Small-Scale Operations (10-30 tons/day)

Plate Diameter: 16"-32" for compact refiner installations
Material Selection: Standard high chrome alloy (cost-effective)
Service Intervals: 200-300 hours with simplified maintenance protocols
Supplier Options: Regional manufacturers with competitive pricing

Key Considerations

Energy Efficiency: Focus on proven designs rather than latest innovations
Maintenance Requirements: Simplified patterns for easier replacement
Cost Optimization: Balance initial investment with operational efficiency

Medium-Scale Operations (30-80 tons/day)

Plate Diameter: 32"-48" with dual-stage refining capability
Service Life: 300-500 hours with optimized maintenance scheduling
Pattern Design: Application-specific customization for target fiber quality

Performance Targets

Energy Consumption: 15-25% reduction through advanced plate technologies
Fiber Quality: Consistent development with minimal variation
Operational Reliability: 95%+ uptime with predictive maintenance

Large-Scale Operations (80+ tons/day)

Plate Diameter: 48"-72" for maximum throughput capacity
Service Life: 400-600 hours with comprehensive monitoring systems
Automation Integration: Digital performance tracking and optimization

Advanced Features

Predictive Analytics: Real-time monitoring of plate performance and wear patterns
Energy Management: Integrated systems for optimal power consumption
Quality Control: Automated fiber analysis and process adjustment
